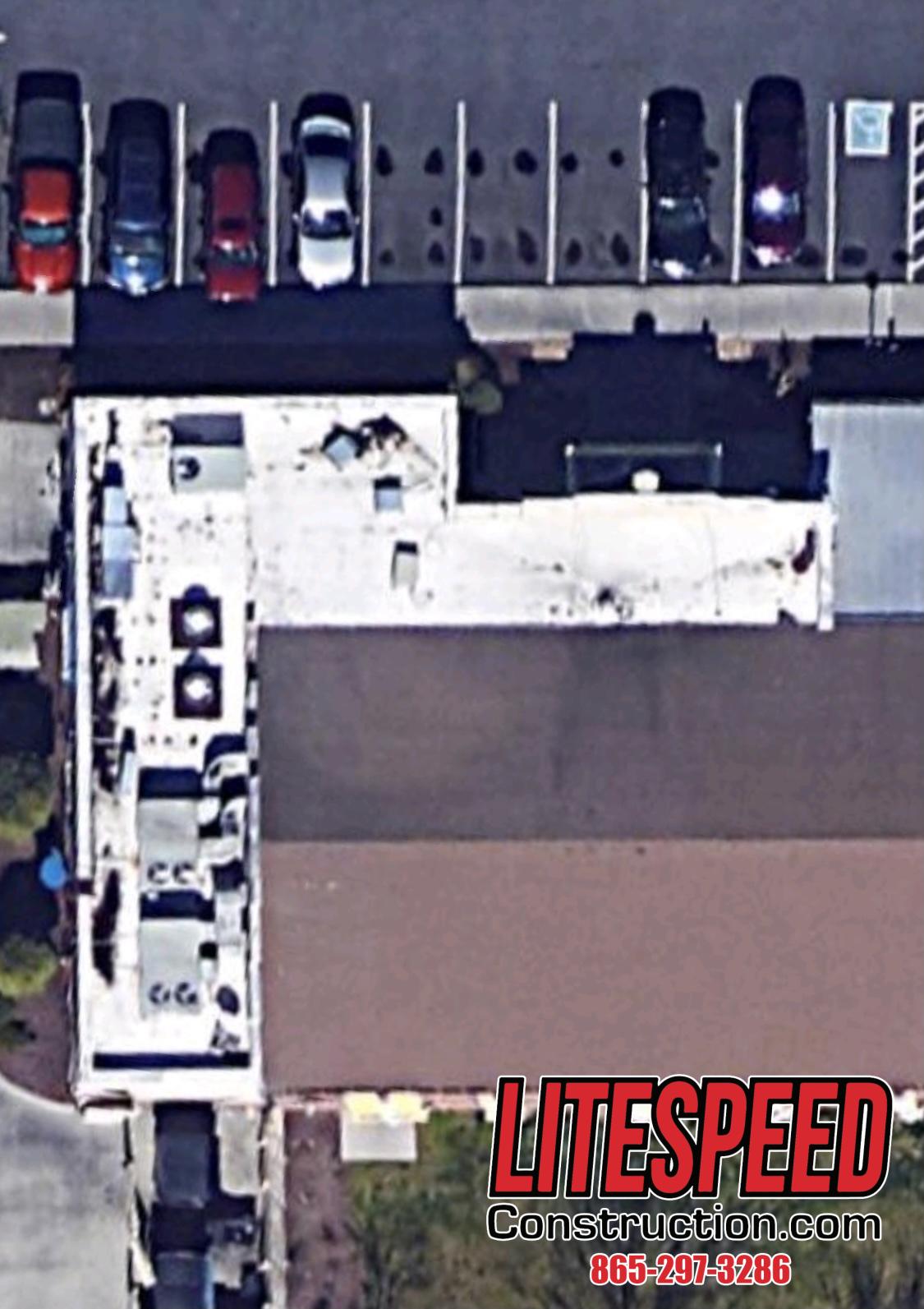

Areas to add vents due to moisture under membrane

  1. 1
    Adding ventilation to high moisture areas.

    This corner was particularly high in moisture

    Go To Pin
  2. 2
    Membrane holding moisture

    This area was a bit lower and water has gathered there.

    Go To Pin
  3. 3
    More moisture between wall and grease traps

    As you can see there is a decent amount of puddling water/moisture in this area.


    Go To Pin
  4. 4
    Moisture from the holes by the grease traps

    As you can see anything yellow, orange, or reddish is warm water or moisture under the membrane. If it’s black, blue, or purple then it’s cold and not wet

    Go To Pin
  5. 5
    More water next to ac unit

    Go To Pin
